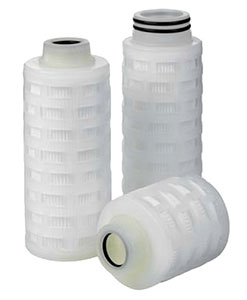

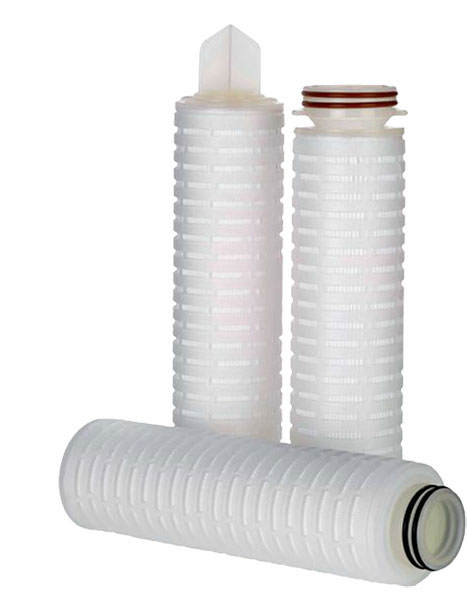

ÖlofPleat TP Serires cartridges have been designed specifically for use in a wide range of aggressive gas and liquid processing applications. Its naturally hydrophobic PTFE membrane makes this cartridge an ideal choice for systems requiring excellent compatibility, reliability and a consistently high quality filtrate.
Features
- A naturally hydrophobic PTFE membrane.
- 0.2μm rated filter in liquids and 0.02μm in gases.
- Polypropylene support.
- Minimal fiber migration.
- Wide chemical compatibility.
- Validation by bacterial and aerosolized bacteriophage challenge.
- Junior cartridge available. All cartridges are thermally bonded and adhesive free. Each unit is pre-flushed with ultra-pure water and integrity tested before final assembly.
- Can be steam sterilized and sanitisable.
- Meet current US FDA CFR Title 21 requirements.
- Fully integrity testable by Water Intrusion, Bubble Point or Diffusion Flow test.
- All B grade modules are integrity tested during manufacture.
- Thermal bonding process eliminates adhesives and ensures minimal extractables.
- Identification mark on every cartridge.
Grades & absolute rated pore sizes
- 0.1, 0.2, 0.45, 1.0μm and solvent grade.
- General Grade.
- Biological Grade.
Operational Data
- Maximum temperature: 80°C
- Maximum differential pressure:
- Forward flow:20°C – 5 bar (72.5 Psid)
- Reverse flow:20°C – 3 bar (43.5 Psid)
- Recommended replacement pressure drop: 3.5 bar (50 Psid)
Standard Applications
Ölof Filtration Teknologerna AB manufactures a comprehensive range of filter housings for the TP Series cartridges including the industrial 50 and 60 Series and the 70 Series for hygienic applications. Please consult our Sales Office for further details on the full range.
Dimensions
Standard 10”
71mm
0.75m²
Junior 5”
56mm
0.25m²
Sterilisation and Sanitisation
- Steam or Autoclave: 135°C for >150 hours
Applies to single open end cartridges only. For all steaming and hot water applications, the Glass Filled end cap option must be used.
Materials of Construction
- Filter Media: PTFE
- Media Support: Polypropylene (PP)
- Cage, Core & End Caps: Polypropylene (PP)
Product validation guide available on request. All ÖlofPleat TP Series cartridges are manufactured under strict control with batch number identification, giving full traceability on all components.
Ordering information
(0.75m²)
J – 56mm
(0.25m²)
10 – 10"
20 – 20"
30 – 30"
40 – 40"
005 – 5μm
010 – 10μm
025 – 25μm
050 – 50μm
070 – 70μm
100 – 100μm
E-EPDM
N – Buna N
A- PE
V-Viton
T-PFA encapsulated
Viton
F: Double open & cap (DOE)
0: 222 with Flat End (SOE)
5:222 with Fin (SOE)
6:226 with Flat End (SOE)
7:226 with Fin (SOE)
9: Glass Filled end cap
