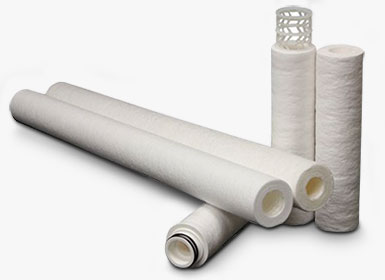

ÖlofDepth IMB Industrial Melt Blown Filter Cartridges are constructed by 3 layers of depth Polypropylene fibers. With the innovative design, the industrial grade filter cartridges allow comprehensive distribution of fluid flow throughout the entire depth of media. The manufacturing process combines superior process control along with quality assurance, resulting outstanding performances of finer retention rate, higher dirt holding capacity and lower pressure drop.

Features

  • 3 layers construction creates great dirt holding capacity and superior service life.
  • Innovative construction design provides consistent particle removal efficiency.
  • 100% polypropylene depth filter cartridges for broad chemical compatibility.
  • Free of binders, additives and lubricants.
  • Manufactured by FDA grade polypropylene resin.
ÖlofDepth IMB Series

Standard applications

  • Pre RO/DI
  • Food & Beverage
  • Plating Solutions
  • Chemicals
  • Petrochemical Process
  • Electronic

Operational Data

  • Maximum operating temperature: 60°C (140°F)
  • Maximum differential pressure:
    • 4.0 bar at 20°C (58 psi at 80°F)
    • 2.0 bar at 60°C (29 psi at 140°F)
    • 1.0 bar at 60°C (14 psi at 140°F)
  • Recommended Change Out Differential Pressure:
    • 1.5 bar (22 psi)
  • Inside diameter: 1.1” (28mm)
  • Outside diameter: 2.5” (63mm)

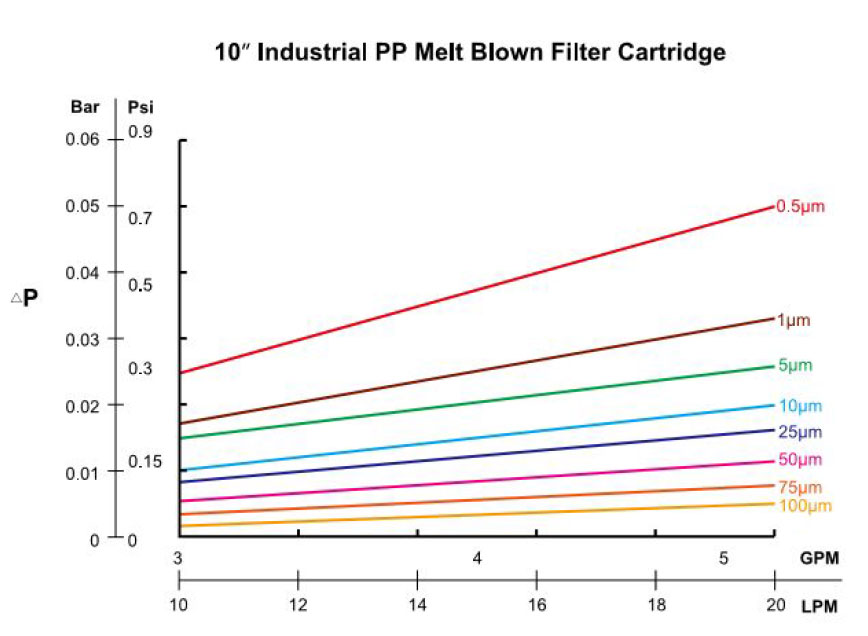

Flow Rate

Ordering Guide

Media
PP – Polypropylene
Rating (μm)
1 ‐ 1μm
5 ‐ 5μm
10 ‐ 10μm
25 ‐ 25μm
50 ‐ 50μm
75 ‐ 75μm
100 - 100μm
Length (inch-mm)
05” – 127
06” – 152
063” – 160
09.8” – 248
10” – 250
10.1” – 254
19.5” – 495
19.8” – 500
20” – 508
29.2” – 743
29.5” – 750
30” – 762
39” – 990
39.3” – 1000
40” – 1016
50” – 1270
Other customized sizes
End caps
0: Flat Gasket Double Open End
5: 2-222 O-ring with Flat End
6: 2-226 O-ring with Flat End
8:2-222 O-ring with Fin
9: 2-226 O-ring with Fin
Option
C - PP Core
W - Patterned Surface
U - Grooved Surface
CW - PP Core + Patterned Surface
EX - Extended PP Core
Gasket
S-Silicone
E-EPDM
V-Viton
W-Teflon encapsulated Viton
