ÖlofDeep Super Nylon Filter Cartridges are constructed with melt blown technology and designed for applications with high temperatures as well as ones involving solvents, hydrocarbons and aromatics. Other features include integral moulded center core and full range end caps to ensure maximum compatibility with existing installations.
Features
- Filtration ratings from 1 μm to 100 μm.
- Micro-denier melt-blown Nylon fiber, high removal ratings and low pressure drop.
- Continuously gradient pore construction increases dirt holding capacity.
- Rated for temperature up to 120°C.
- Excellent chemical compatibility with solvents, hydrocarbons and aromatics.
- High void, resulting in low differential pressure drop and excellent dirt holding capacity.
- Free resins, binders, lubricants or static agents to ensure minimal extractables.
- Formed by thermal bond without use of any binders or adhesives.
- In compliance with the latest EC Directive for food contact.
Standard Applications
Operational Data
- Petrochemical and fine chemical industries.
- Paints and inks.
- It´s high temperature rating and broad chemical compatibility with hydrocarbons and solvents makes it ideal for many
other applications.
- Maximum operating temperature: 120°C (250°F)
- Maximum operating forward pressure: 1 ~ 25 μm 2.5 kg/cm² 50 ~ 100 μm 1.0 kg/cm².
Filtration efficiency
Specification
SNCB001
SNCB005
SNCB010
SNCB025
SNCB050
SNCB070
SNCB100
Initial Filtration Efficiency
1 μm
5 μm
10 μm
25 μm
50 μm
70 μm
100 μm
>90%
>90%
>90%
>90%
>90%
>90%
>90%

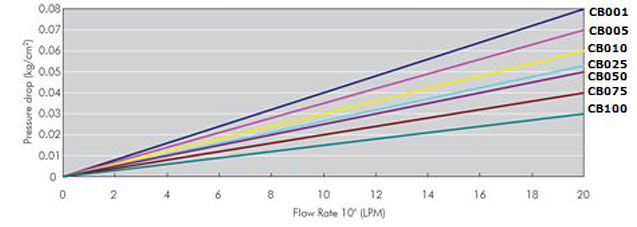

Initial pressure drop
Ordering Guide
Media
SN – Super Nylon
Outer Diamter
C – 63mm
Inner Diamter
B – 28mm
Rating (μm)
001 – 1μm
005 – 5μm
010 – 10μm
025 – 25μm
050 – 50μm
070 – 70μm
100 – 100μm
Length (inch)
0987 – 9,87”
10 – 10”
20 – 20”
30 – 30”
40 – 40”
End caps
Blank: Double open F: Double open & cap (DOE)
0: 222 with Flat End (SOE)
5:222 with Fin (SOE)
6:226 with Flat End (SOE)
7:226 with Fin (SOE)
Material del O-ring
S-Silicone
E-EPDM
N – Buna N
A- PE
V-Viton
T-PFA
encapsulated
Viton
Material del O-ring
N -Nylon
